    DIN Globe Valve

    DIN Globe Valve

    DIN Globe Valve

    Size:DN15 to DN400.
    Class: DN15-DN400.

    End Connection: Flange、Butt Welding.

    Material：1.0619、1.4308、1.4408、WC6、LCB、C5、4A.

    Operation: Handwheel、Gearbox、Actuator.

     Technical Data

    技术标准Standards
    Design and Manufacture BS EN 13709
    Face to face dimensions BS EN 558-1
    Flange end dimensions BS EN 1092-1
    Butt welding end dimensions BS EN 12627
    Inspection and Test BS EN 12266
    Temperature and Pressure BS EN 12516-1

    Main Parts Materials

    No 零件名Part Name 铸钢 Carbon Steel to EN 合金钢 Alloy Steel to EN 不锈钢 Stainless Steel to EN
    1 阀体 Body 1.0619(GS-C25） A352 LCB 1.7357 1.4308 1.4408 1.4462
    2 阀座 Seat 13Cr or Stellite6 1.4301 Stellite6 1.4308 or Stellite6 1.4408 or Stellite6 1.4462
    3 阀瓣 Disc 1.4021(X20Cr13) 1.4301 1.4021(X20Cr13) 1.4301 1.4401 A182 F51
    4 阀杆 Stem 1.4021(X20Cr13) 1.4301 1.4021(X20Cr13) 1.4301 1.4401 A182 F51
    5 垫片 Gasket Graphite+SS304 Graphite+SS304 Graphite+SS316 Graphite+SS304 Graphite+SS316 Graphite+SS316
    6 阀盖 Bonnet 1.0619(GS-C25） A352 LCB 1.7357 1.4308 1.4408 1.4462
    7 螺栓 Bolt A193 B7 A193 L7 A193 B16 A193 B8 A193 B8M A193 B8M
    8 螺母 Nut A193 2H A193 4 A193 4 A193 8 A193 8M A193 8M
    9 填料 Packing Graphite Graphite Graphite Graphite or PTFE Graphite or PTFE Graphite or PTFE
    10 填料压盖 Gland 1.0619(GS-C25） A352 LCB 1.7357 1.4308 1.4408 1.4462
    11 阀杆螺帽 Stem Nut  0.7043(GGG40.3)  0.7043(GGG40.3)  0.7043(GGG40.3) Copper Alloy Copper Alloy Copper Alloy
    12 手轮 Handwheel Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron Ductile Iron

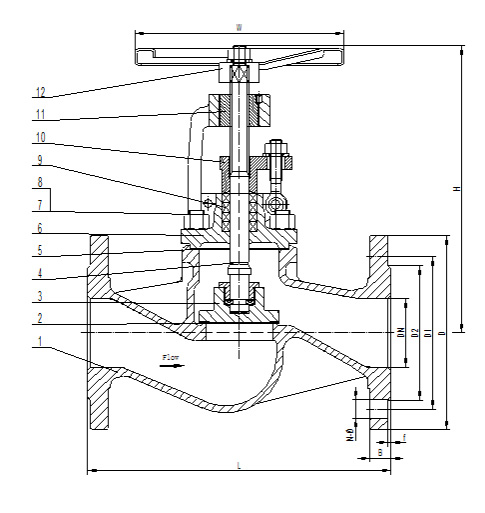

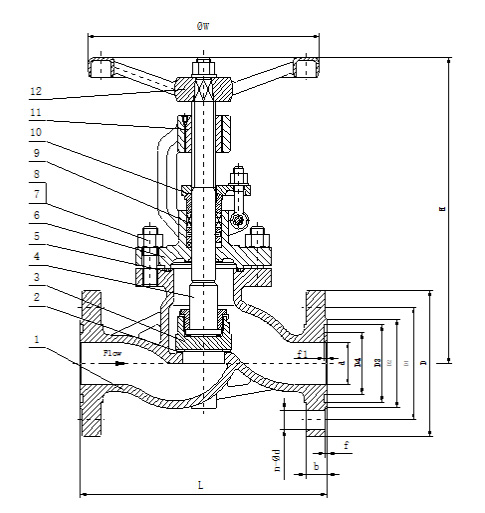

     Main Outline and Connetcting Size

    Fig：101-PN16(EN558-1 series1)
    DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L mm 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H mm 185 185 205 205 245 250 270 315 370 410 440 590 730 840 980 1080
    W mm 140 140 160 160 180 180 200 220 250 280 300 500 500 500 600 600
    Weight Kg 3.85 4.6 5.5 7.5 9.5 12 16 22 33.3 50 72 135 195 340 510 820
    Kv - 4.6 8 13.2 21 33 51 83 133 205 315 454 780 1285 1805 2225 2906
    Fig：101-PN25(EN558-1 series1)
    DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L mm 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H mm 185 185 205 205 245 250 270 315 386 440 515 655 820 928 980 1080
    W mm 140 140 160 160 180 180 200 220 250 280 300 500 500 500 600 600
    Weight Kg 3.85 4.6 5.5 7.5 9.5 12 16.6 23.5 34.5 52.5 75 135 220 370 550 865
    Kv - 4.6 8 13.2 21 33 51 83 133 205 315 454 780 1285 1805 2225 2906
    Fig：101-PN40(EN558-1 series1)
    DN mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
    L mm 15 150 160 180 200 230 290 310 350 400 480 600 730 850 980 1100
    H mm 185 185 205 205 245 250 270 315 386 440 515 655 820 928 980 1080
    W mm 140 140 160 160 180 180 200 220 250 280 300 500 500 500 600 600
    Weight Kg 3.85 4.6 5.5 7.5 9.5 12 16.6 23.5 34.5 52.5 75 144 235 390 575 900
    Kv - 4.6 8 13.2 21 33 51 83 133 205 315 454 780 1285 1805 2225 2906
